Gas Recovery in Hydraulic Fracturing Operations

The following is a document written by Professor Marc Durand of the University of Quebec at Montreal regarding the problems of hydraulic fracturing and why recovery of more than 20% of the shale gas in a formation is not possible.

The Exploitation of Conventional Gas Wells vs Exploitation
by Extended Horizontal Drilling and Hydraulic Fracturing

by Marc Durand, doct-ing en géologie appliquée
Professeur retraité, dépt. Sciences de la terre, UQAM

Why isn't it possible to extract more than 20% of the gas in a shale gas deposit and what are the consequences of that fact? Notwithstanding the still limited knowledge we have of the long term impacts of the technique of hydraulic fracturing in extended horizontal bores, we shall analyze the more obvious differences between this new technique and classical gas exploitation.

In conventional exploitation, the gas deposits are found in specific geologic structures: a formation or geologic structure of great porosity resulting from inter-granular spaces and/or natural inter-connecting fractures, the whole capped by a watertight formation which seals the top of the reservoir, as in the schema below.

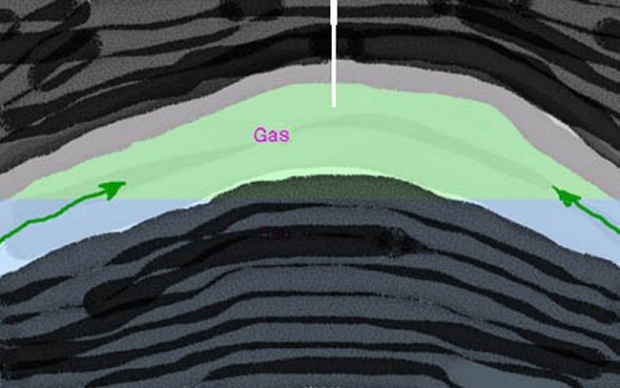

Conventional schema of a gas deposit
Figure 1. Conventional schema of a gas deposit

Once the gas vein is located following a real geologic exploration, the extraction well drilled into the reservoir is able to extract almost all (>95%) of the gas in the deposit. The gas is propelled to the surface by the water. (there is a possibility of liquid hydrocarbons between the water and the gas). It is important to note that this gas has VERY slowly migrated from a matrix (a sedimentary rock which may be shale for example) and has accumulated in this natural reservoir in a process which has taken hundreds of thousands of years, and more probably millions of years. Why? Because the shale matrix has a very low permeability coefficient (< 10exp-12m/s). Once inside the permeable rock of the geologic pocket the permeability is of a much higher order (>10exp-6m/s). In exploiting a natural deposit then, the gas migrates easily towards the extraction well. Thus eventually the production of the well falls to zero. The reservoir is not 100% empty, but almost.

It is extremely dangerous to extrapolate from the above scenario to that of shale gas: in the case of shale gas, the fracturing is immediate and we do not reach equilibrium at the end of the exploitation. Moreover, the effects are not limited to a local deposit but extend to radically transform an entire geologic layer.

In the case of artificially fracturing the shale gas deposit itself, the gas migrates over a shorter distance than the long migration of the classical natural gas, but it is not an instantaneous process. Within a few mm of the edge of a fracture, the gas escapes fairly quickly (see below), but the greater the distance, the more one must count on geologic time for the process of migration to happen in the new shale as it once occurred with the natural reservoir. With a permeability of 10-12cm/s, for example, even under a gradient (i) elevated by 100, the time required to traverse only a few centimetres is on the order of centuries or even millennia (v =Kxi).

That is how things work in the parts of the shale which remain intact between the fractures . But because of the steep gradient, migration will occur.

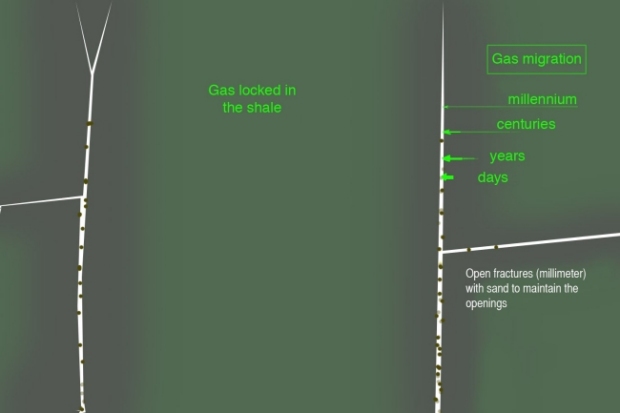

Gas migration in the shale in proximity to the new fractures; metric view of shale at the end of exploitation (3 to 5 years?)
Figure 2. Gas migration in the shale in proximity to the new fractures; metric view of shale at the end of exploitation (3 to 5 years?)

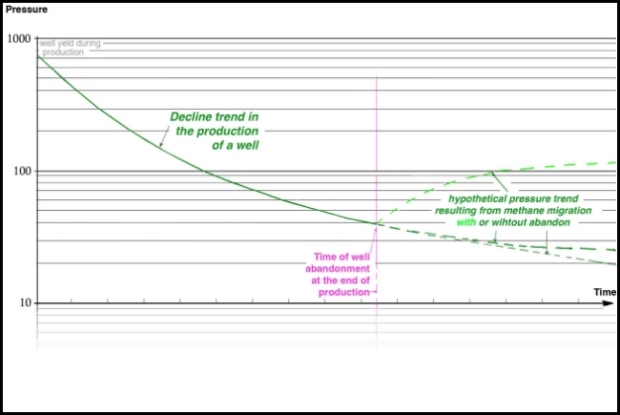

The exploitation by hydraulic fracturing produces elsewhere descending logarithms or exponentials as in the figure below for the Marcellus.

The output is only commercially viable for a few years; it is absolutely absurd to say (as did the Talisman geologist) that afterwards there is no more gas and one seals the wells. There is only zero output when time goes to infinity.

On top of this, the National Energy Board estimates that the extraction leaves 80% of the gas in the shale. Nothing will stop the process once begun. It will continue for centuries and millennia. The well caps do not have a comparable lifespan. It would be truly astonishing if the the gas industry has in the last eight years invented structures capable of lasting for millennia. The ongoing gas migration will slowly restore pressure in the wells. After a geological time span, this new level of fractures may become a comparable deposit to the conventional gas deposit.

Civil engineers always would have loved to have techniques to make viaducts and bridges last more than fifty years . Here, the gas industry, with the same materials, steel and cement, is asking us to believe that they have the recipe for thousands of capped wells to eternally resist the growing pressure in a great fractured Utica reservoir, under our feet in the St. Lawrence Valley.

The case of the 31 wells already drilled

I suggest that we quickly find a method of managing the wells already in place; less than half have reached the hydraulic fracturing stage, which reduces the number requiring treatment to about a dozen. But this nevertheless means a dozen sites to manage. The public absolutely must not one day inherit this task.

The gas industry which effected the drilling must insure its future management in the very long period following its exploitation. Current legislation must be reviewed to insure that the responsibility for the wells remains with those who dug them.

The present government has a penchant for projects in which the the private sector constructs, exploits, maintains, etc . This style of management should be the one applied to the 31 wells. By means of a 99 year lease with compulsory renewal at the end of this time, each of the well owners would have complete responsibility and should hold insurance and a guaranty of solvency. Being responsible for any problem that may manifest will change the game. The industry should not balk at this obligation, because according to what it asserts (and contrary to what I believe), there will be no problems. Personally, I am convinced that rigorously imposing this sole requirement, will be sufficient to completely halt further activity here in the Utica.

The idea of obligating the constructors of the wells for 9 times 99 may appear preposterous on first blush, but I cite a source that the industry should not contest: Halliburton. On the pages that deal with gas shales, there is not one line on the long-term risks. But on other pages dealing with CCS (Carbon Capture & Storage) the Halliburton techniques of sounding and repairing the ageing pits are lauded: in cycles of soundings-repairing- returning to a phase of soundings, all this over centuries, even millennia.

The Post-Closure phase addresses post decommissioning - which has an extremely long time horizon of hundreds, if not thousands, of years

http://www.halliburton.com

The wells that Halliburton indicates should be followed for millennia are à priori less risky than the wells with horizontal extension and hydraulic fracturing: they are vertical wells connecting on the surface with CO2 storage tanks, less problematic than methane. The gas industries are not ignorant of the long term risks of shale gas wells; they are only pretending that these don't exist and that the wells can innocuously revert to the public domain. There is no regulation anywhere which obliges them to include these long term risks in their business plans. And they know they must act quickly because the situation can change.

In conclusion

There are two important differences between shale gas and conventional gas deposits and these two differences provide in themselves the fundamental reasons for rejecting totally the ill-considered idea of shale gas exploitation by means of the currently proposed technique.

1)Hydraulic fracturing artificially creates a network of interconnected fractures towards which the gas begins to migrate. The technique initiates the flow of gas in the deposit as happened in the classic natural gas deposits over hundreds of thousands of years, but the technique absolutely can not speed up the geologic process. The construction of a well and its fracturing are completed in a few weeks; the flow begins and continues on a geologic time scale (> 100,000 years). The amount of time before the well is closed (once the rate of flow is no longer commercially viable) represents no more than an infinitesimal portion of the geologic time.

2)The drilling of wells and the fracturing of the homogenous rock is a totally irreversible operation with no technical solution to restore the the shale to its original impermeable state. These pits closed off at the end of commercial exploitation become potential conduits for the gas leaks. For these structures, as all structures made of steel and concrete, there is the fundamental question of their life span - from which follows the question of what will happen when their state of degradation can no longer withstand the pressure of the gas. This pressure in the reservoir will grow slowly but continually while the well structures will continue to degrade. These two phenomenon will in time become manifest on the surface in the growing number and increasing flow of methane leaks. The management of these buried works will cost colossal sums.

Marc Durand, doct-ing en géologie appliquée
Professeur retraité, dépt. Sciences de la terre, UQAM

*http://www.facebook.com/note.php?note_id=189917767706479

** more precisely cement grout in the case of the wells and not real concrete; the grout is a great deal less resistant and durable than real concrete.

See also:
Shale Gas - A Business Plan Very Much in the Red
